Hybrid Composite
Triaxial fiberglass keeps the ride smooth and predictable, while carefully placed carbon adds a quick, lively response.
AAA Poplar Core
A clean, vertically laminated wood core keeps the ride balanced, lively and naturally smooth.
Poured Urethane Sidewalls
Seamless urethane sidewalls protect the core, take the edge off chatter and help the edges feel settled.
Real Wood Veneer
Every natural wood veneer is a little different, giving each build its own look and a touch of extra damping.
Titanal Binding Reinforcement
Titanal under the bindings helps the screws hold tight, smooths out chatter and adds dependable edge grip.
Basalt Binding Reinforcement
A basalt layer around the binding area spreads load, cuts down vibration and adds strength where it is needed most.
Sintered Base Construction
A tough sintered base holds wax well and keeps the glide fast and consistent in changing snow.
Super Sap® Epoxy System
Super Sap® bonds the whole layup together with dependable strength and a lower-impact, bio-based resin system.
Fiberglass
Smooth, forgiving and easy to trust, with plenty of durability for everyday riding.
Carbon Fiber
Lighter and quicker, with fast energy return and a lively feel. Basalt layers sandwich the carbon to add damping and strength.
The 5040 likes to go fast, laying down calm, precise turns with plenty of support on firm snow.

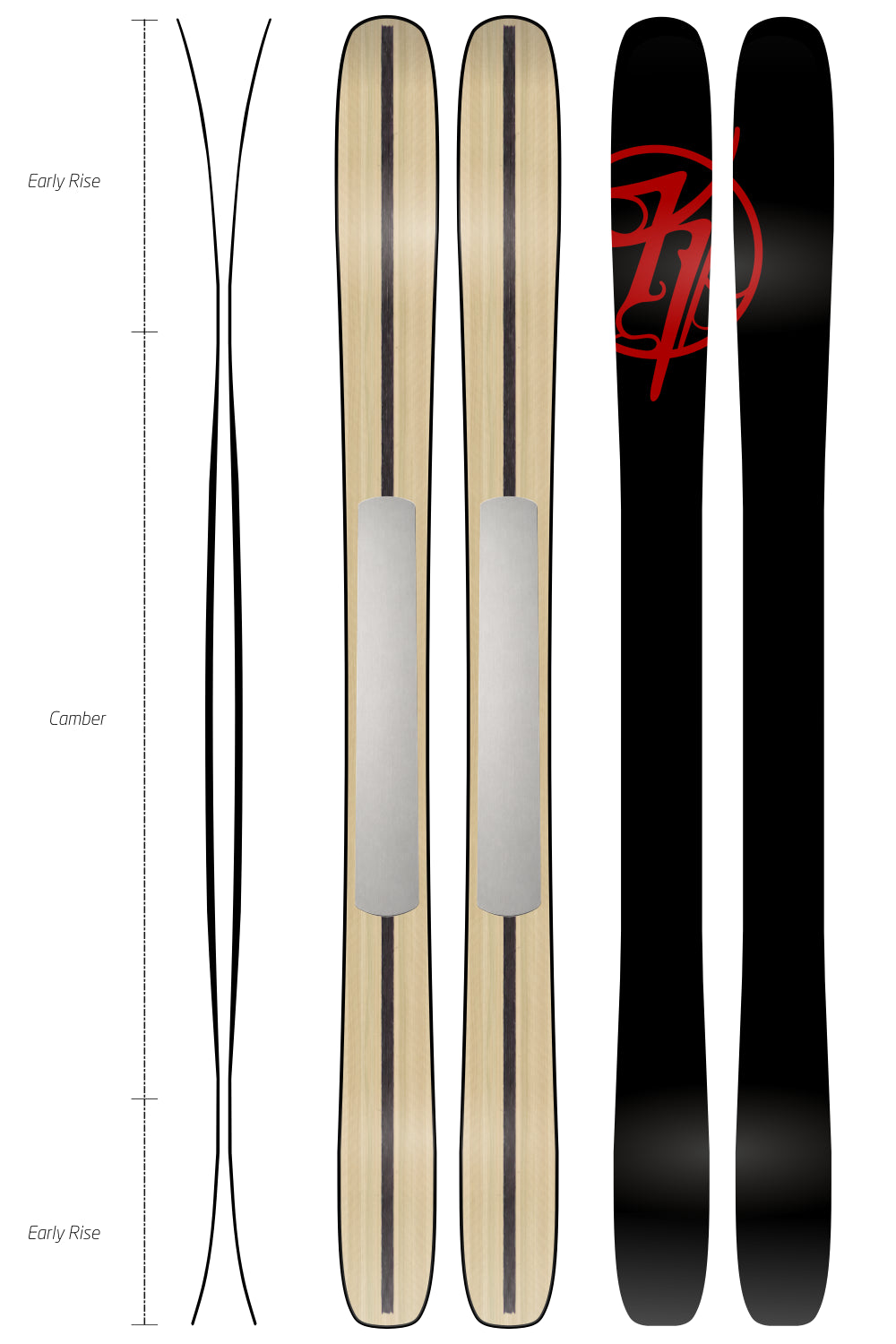

ProfileEarly-rise camber
Early rise makes turn entry smoother, while camber keeps support and pressure underfoot.
On edgeLong & composed
The long radii and narrow platform feel calm and predictable when you lean into a turn.
At speedPrecise & grounded
The long running length stays settled when you let the ski run through open terrain.
Overall feelMid-stiff
The mid-stiff flex feels direct without becoming a handful between turns.
Extra Narrow (-8mm), Narrow (-4mm), Wide (+4mm), Extra Wide (+8mm), and custom widths available.
| Specification | 163 | 169 | 175 | 181 | 187 | 193 |
|---|---|---|---|---|---|---|
| Running length | 1102 mm | 1152 mm | 1201 mm | 1259 mm | 1316 mm | 1371 mm |
| Nose length | 290 mm | 296 mm | 301 mm | 303 mm | 305 mm | 307 mm |
| Tail length | 236 mm | 242 mm | 247 mm | 248 mm | 250 mm | 252 mm |
| Nose width | 130 mm | 136 mm | 141 mm | 143 mm | 143 mm | 144 mm |
| Tail width | 126 mm | 132 mm | 135 mm | 136 mm | 137 mm | 138 mm |
| Waist width | 109 mm | 114 mm | 116 mm | 116 mm | 116 mm | 116 mm |
| Sidecut radius | 16 m | 16.5 m | 17 m | 17.5 m | 18 m | 19 m |
| Camber profile | Early Rise | Early Rise | Early Rise | Early Rise | Early Rise | Early Rise |
| Flex pattern | Mid Stiff | Mid Stiff | Mid Stiff | Mid Stiff | Mid Stiff | Mid Stiff |
| Carbon weight (g) | 1495 | 1557 | 1636 | 1724 | 1780 | 1838 |
| Fiberglass weight (g) | 1586 | 1652 | 1736 | 1828 | 1888 | 1950 |
| Surface area (cm²) | 1976.9 | 2058.52 | 2163.68 | 2279.13 | 2353.43 | 2430.61 |
